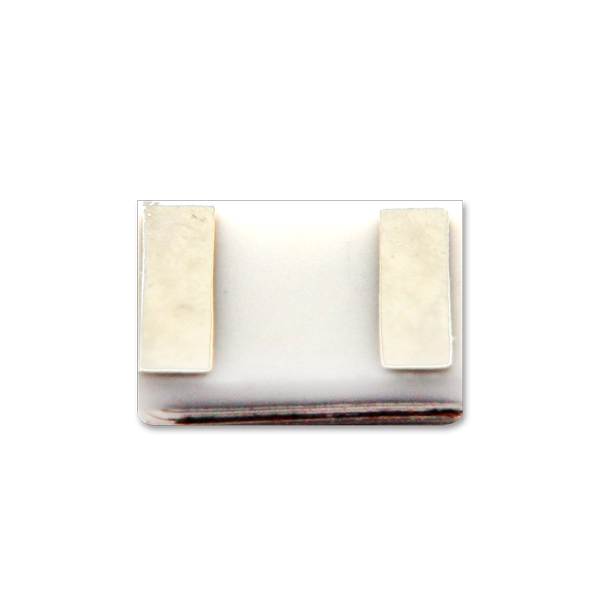

AH-3020UVA15-120-004

Product attributes：

Package size：3.0*2.0mm

Wavelength：365-375nm

Forward Voltage VF：2.8-3.8v

View Angle：120°

Forward Current IF：20mA

Product Consultation
Light Curing Point Light Source, Small Area Light Source, Exposure Machine Light Source, etc.
Specification Download
Product name Download Package size Chip size Wavelength Ie mw/sr Radiant Flux Forward Voltage VF Luminous angle Working current
AH-3020UVA15-120-004AH-3020UVA15-120-004 AH-3020UVA15-120-004Download 3.0*2.0mm 15mil 365-375nm
2.8-3.8v 120° 20mA
Recommended Products
AH-25UVA20-120-001
2.5*2.5mm365-375nm120degrees20mil 0.5W
MORE +
AH-35UV1C45-120-489
3.5*3.5mm 390-410nm 120degrees45mil 3W
MORE +
AH-3020UVA15-120-004
3.0*2.0mm 365-375nm120degrees15mil 0.08W
MORE +
Recommended application
Printing machine
Printing machine
A-bright  has a variety of  UVA LED can use in UV Printing machine, because of  UV Printing machine possible to shorten the work that the existing printing method takes several days to complete, and it can be completed in only
More
Nail machine
Nail machine
A-bright  has a variety of  UVA LED can use in Manicure machine,LED light declining performance is slow, therefore, it is not necessary to replace the lamp often, and the service life is long.
More
