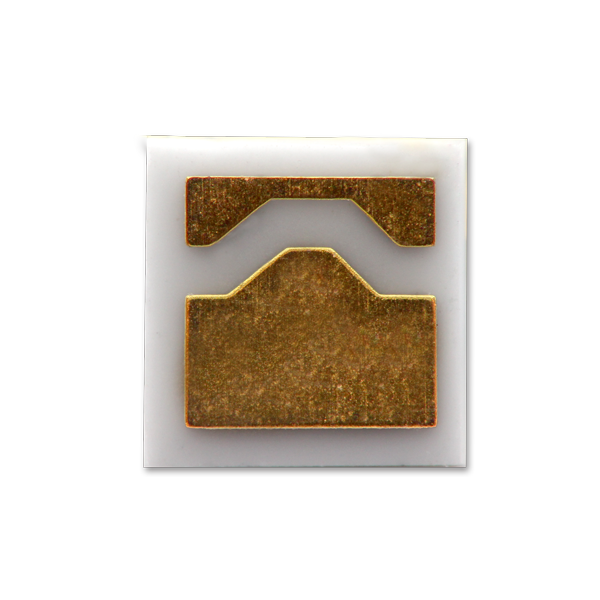

AH-25UVA20-120-001

Product attributes：

Package size：2.5*2.5mm

Wavelength：365-375nm

Radiant Intensity Ie:165-210 mw/sr

Forward Voltage VF：2.8-3.8v

View Angle：120°

Forward Current IF：150mA

Product Consultation

Light Curing Point Light Source, Small Area Light Source, Exposure Machine Light Source, etc.

Specification Download

Product name	Download	Package size	Chip size	Wavelength	Ie mw/sr	Radiant Flux	Forward Voltage VF	Luminous angle	Working current
AH-25UVA20-120-001	Download	2.5*2.5mm	20mil	365-375nm	165-210		2.8-3.8v	120°	150mA
