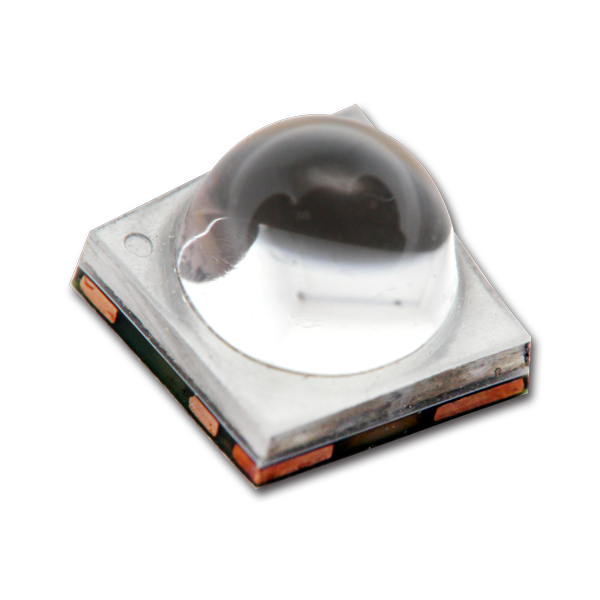

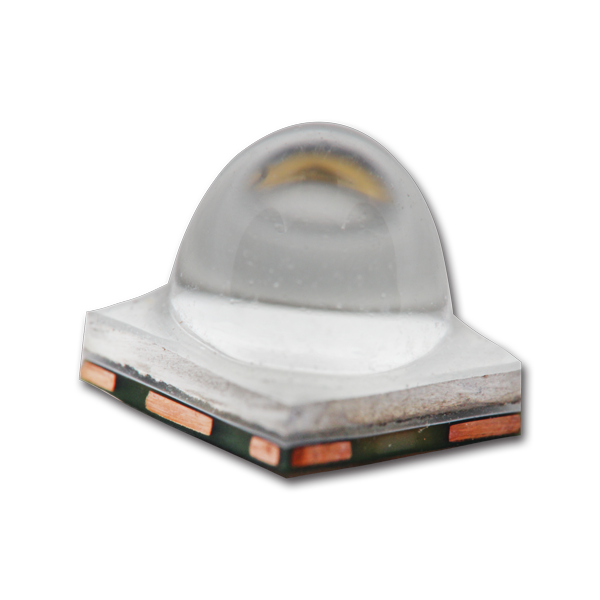

B44DD8B1CS0

-Packaging dimensions： 4.4mm×4.4mm   SMD

- Wavelength：278-285nm

- Radiant Flux ： 7mw

- Forward Voltage VF ：6-9V

-  View Angle :30°

- Forward Current IF : 100mA

Product Consultation

Product characteristics

※Selection of different wavelength can sterilize 99.9% for different products.

※ Choose from multiple perspectives to enhance and optimize the benefits of your products.

※ Customized flexibility allows you to apply it to product design at will.

Product applications:

Many applications of UV-C LED include medical analyzer, water purifier, air and surface sterilizer, surface and medical sterilizer, air purifier, household appliances sterilizer and so on.

Specification Download

Product name	Download	Package size	Chip size	Wavelength	Ie mw/sr	Radiant Flux	Forward Voltage VF	Luminous angle	Working current
B44DD8B1CS0	Download	4.4*4.4	30mil	278-285nm		7mw	6-9v	30°	100mA
