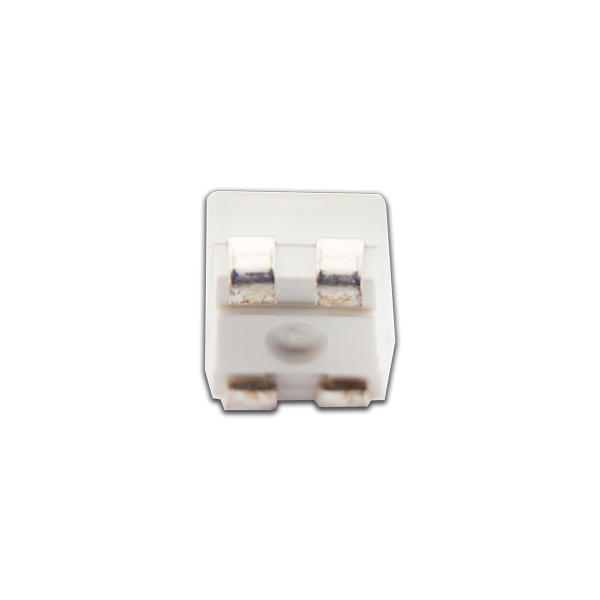

AH-28WIR-94030C1-008

Package size：3.5*2.8mm

Wavelength：810nm

Radiant Intensity   Ie:80mw/sr

Radiant Flux：50-80mw

Forward Voltage VF：1.4-2.0v

View Angle：30°

Forward Current IF：100mA

Product Consultation

Product characteristics

※ Using the latest four-element infrared chip

※ Not only does it fade, but it can produce in large quantities and quickly.

※ Small junction capacitance

※ Save the cost of secondary light source lens

Product Application

Security night vision infrared lighting, iris recognition, face recognition, etc.

Specification Download

Product name	Download	Package size	Chip size	Wavelength	Ie mw/sr	Radiant Flux	Forward Voltage VF	Luminous angle	Working current
AH-28WIR-94030C1-008	Download	3.5*2.8mm	14mil	940nm	80	50-80mw	1.4-2.0v	30°	100mA
